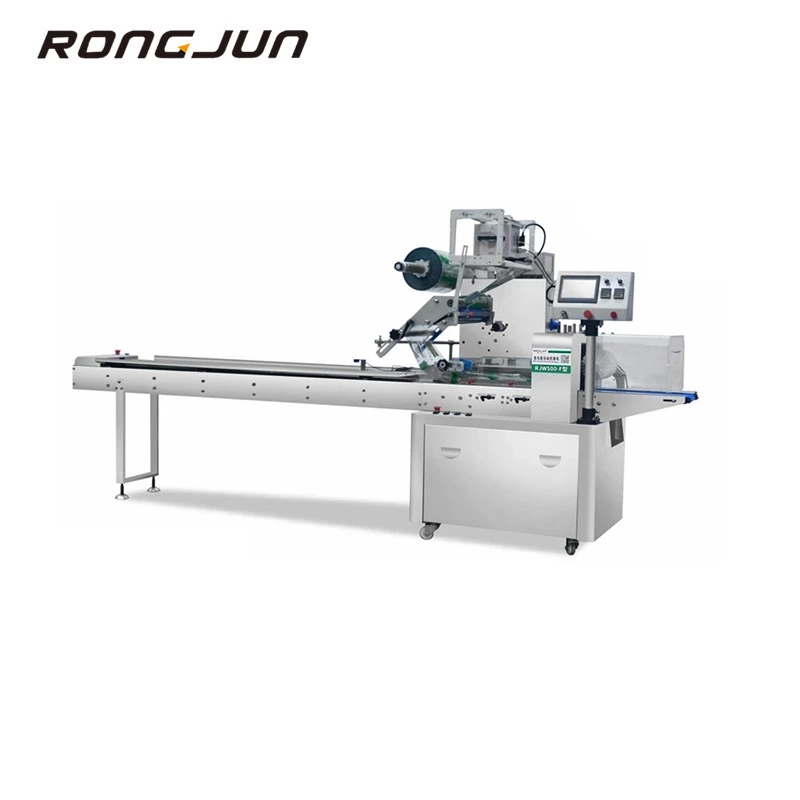

RJW500-F Single Or Three Servo Automatic Packing Machine
- Type
- Pillow packing machine
- Weight (KG)
- 750
- Packaging Material
- OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc.
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- L5320×W1020×H1520
- Machinery Test Report
- ISO9001,CE
- Applicable Products
- It is mainly used for the packing of various solid objects such as biscuits, bread, moon cakes,medicines
- Voltage
- 220V,50/60Hz
- Production Capacity
- 10-150(bag/min)
Performance Characeristics
- Motion control, servo system, precise control
- Level touch screen adjustment without manual adjustment
- Electronic cam adjustment speed, no manual adjustment
- High-precision photoelectric tracking system, accurate sealing and stopping position
- Automatically memorize product information,
- reduce comissioning time for re production and waste of packing materials
- Important electrical parts adopt international famous brands and have stable performance
- Appearance material stainless steel
Scope of application
It is mainly used for the packing of various solid objects such as biscuits, bread, moon cakes,medicines, daily necessities, hardware parts, electrical components, paper boxes or trays.
Technical Parameters
| Model | RJW-500F |
| Packing Speed(bag/min) | 10-150 |
| Packing Size(mm) | L120-999 W30-180 H5-100 |
| Film Max Width(mm) | ＜500 |
| Film Thickness(mm) | ≥0.02 |
| Power | 2.5KW |
| Voltage | 220V,50/60Hz |
| Overall Dimensions(mm) | L5320×W1020×H1520 |
| Weight(kg) | 750 |
| Package | 3.1CBM，2CASES |
| Package Material | OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc. |
Optional configuration: full servo control, punching, corner inserting, labeling, alcohol spraying, automatic film connection, no material standby, thermal transfer, suction
