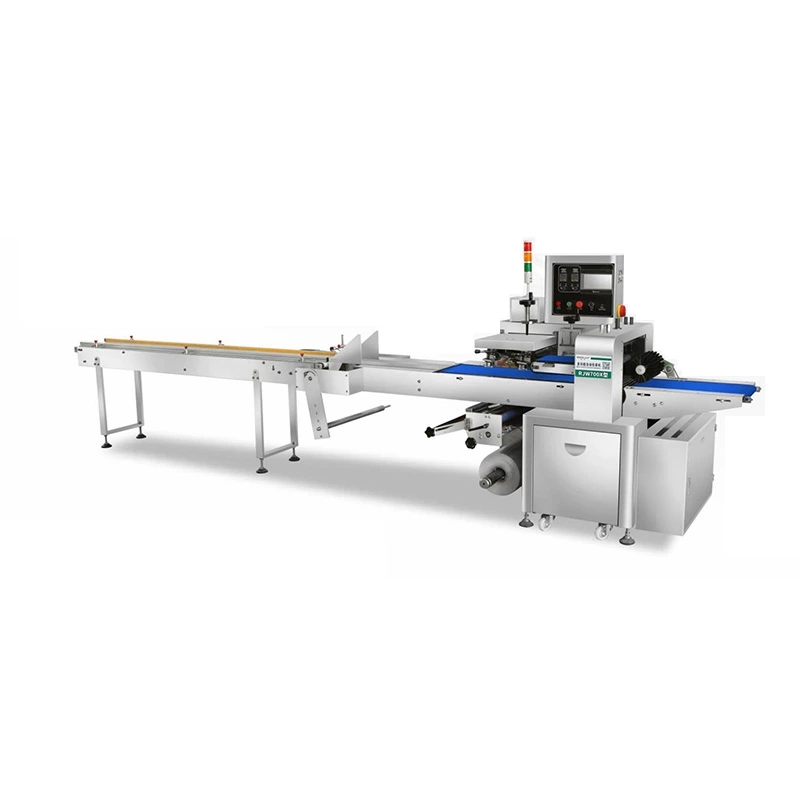

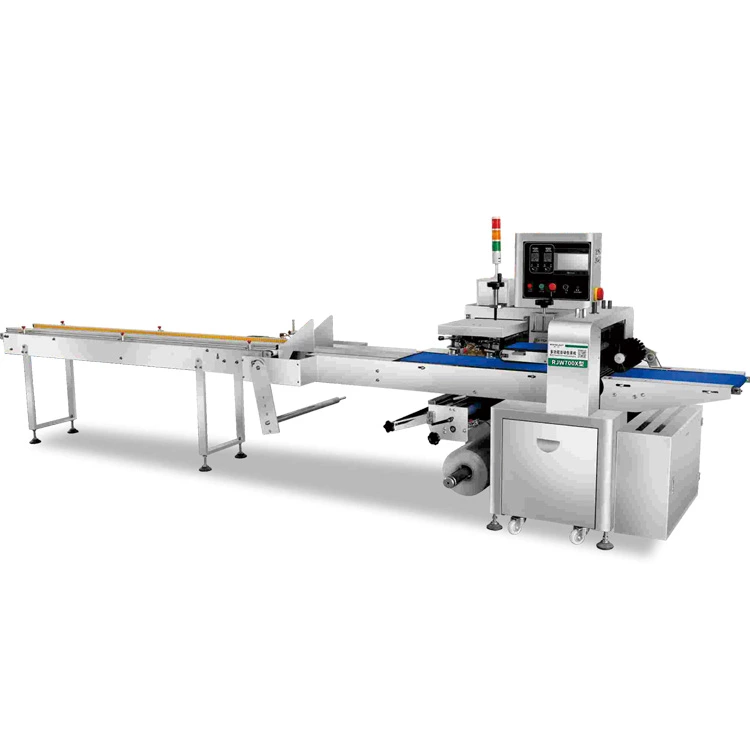

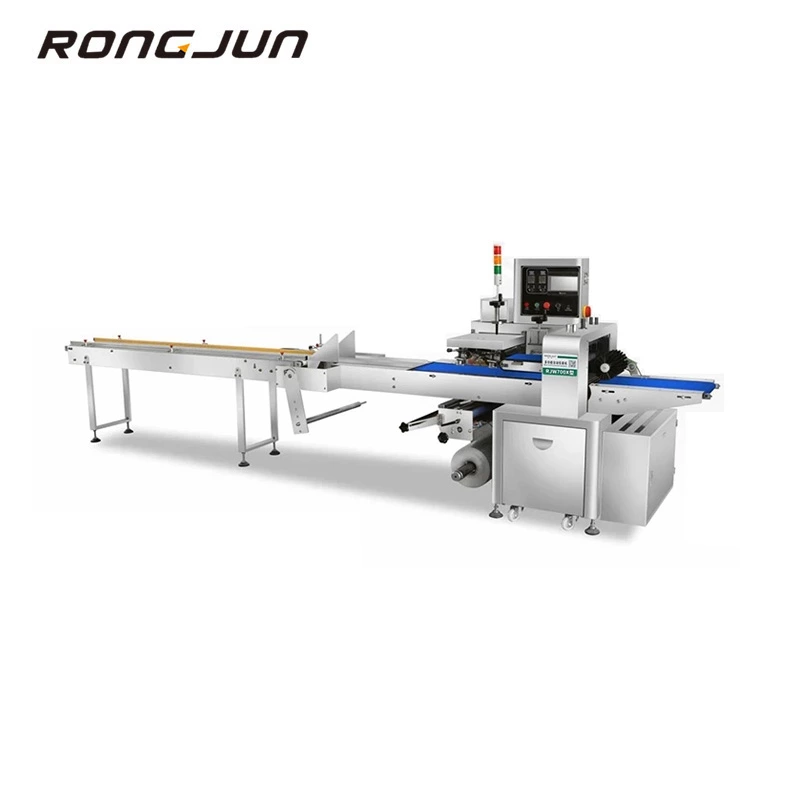

RJW600X-700X Three Servo Automatic Packing Machine

Place of Origin:
Zhejiang, China
RJW600X-700X Three Servo Automatic Packing Machine

Performance Characteristics

  • Computer-controlled packing machine for long and leafy vegetables
  • It can store more than 100 kinds of product information, and can store 100 kinds of product information. The various information of product packing is stored in the form of (product record), and the previous operation data record can be recalled to solve the trouble of replacing the product. It can automatically measure long and long products, and the computer automatially sets the appropriate bag length for packing.
  • Standard equipment for stainless steel conveyor belts
  • Cutting device (PACS)
  • Standard roll film central axis control

Scope of application

Mainly used for multi-package fans, rice noodles, instant noodles collection packing: 4 packs, 5 packs, 10 packs, etc, multi-row biscuits in bulk fish bones, bulk small yellow croaker.

Technical Parameters

Model RJW600/135 RJW600/150 RJW700/150 RJW700/180
Package Flim Size(mm)  Max600 Max600 Max700 Max700
Packing Speed(bag/min) 20-180 20- 140 20-120 20-100
Package Length(mm) 90-999 120-999 120-999 150-999
Product Width(mm) 20-240 20-240 60-300 80-300
Product Height(mm) 5-80 35-100 35-100 35-125
Power(kw) 5.2 5.2 5.2 5.2
Overall Dimensions(mm) L2700×W1050×H1700 L2700×W1050×H1700 L4700×W1150×H1800 L4700×W1450×H1700
Weight(kg) 800 800 1000 1000
Voltage (V/Hz) 200/50 220/50 220/50 220/50

Optional configuration: full servo control, punching, corner inserting, labeling, alcohol spraying, automatic film connection, no material standby, thermal transfer, suction
