RJ800W Medical Paper Plastic Four-sided Packing Machine

Place of Origin:
Zhejiang, China

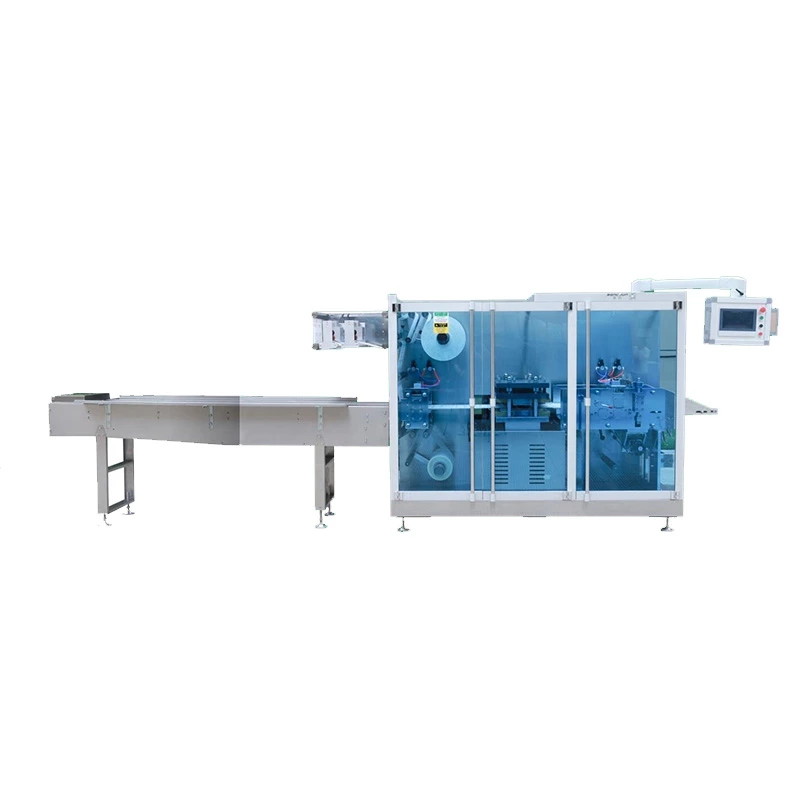

RJ800W Medical Paper Plastic Four-sided Packing Machine

This machine is a four-side sealing packing machine developed by our scientific researchers, which is specially designed and developed for the automatic packing of dressing paste industry. It is suitable for packing, heat sealing and crosscut of sheet materials such as medical dressing and gauze. The machine integrates machine, electricity and gas in one, and adopts PLC programmable controller to make the whole machine run programmed. The whole machine is composed of film developing mechanism, film traction feeding mechanism, double row feeding mechanism, batch number printing mechanism,automatic tracking film heat sealing mechanism, crossbar cutting mechanism and finished product conveying mechanism. It has the characteristics of novel design, tight playing mechanism, reasonable, superior performance, convenient operation and maintenance.

RJ-800W医用纸塑四边封包装机

Functional Chractristics

  • Host servo pulse speed regulation, can adapt to a variety of packing materials
  • Touch screen display, machine speed, set bag length, packing output, heat sealing time will be displayed on the screen, at a glance
  • Bag length automatic adjustment, the change of packing lengthcan be set directly, very convenient and fast
  • Color label according to the color label film, colorless label can be fixed length film,automatic tracking
  • Automatic temperature control, the heat sealing parts using two groups of temperature control instrument automatic temperature control, improve the sealing quality
  • Heat seal automatically track film movement. The hot sealing time and hot sealing tracking length can be adjusted arbitrarily within the specified range
  • The whole machine is driven by servo motor, good control performance such as regulation and maintenance.

Scope Of Application

RJ800W Medical Paper Plastic Four-sided Packing Machine

Technical Parameters

Model RJ-800W
Productive Capacity 100-200bag/min (depending on packing materials)
Maximum Packaging Film Roll Size φ400mm
Packing Film Width 350mm
Package Size L:70-450mm W:80-175mm L:1-5mm
Compressed Air 0.3m³/min
Air Pressure 0.5-0.7Mpa
Voltage 220/380V   50Hz
Gross Power 50kw
Machine Weight 2750kg
Overall Dimensions(mm) L5600×W1550× H1800mm
