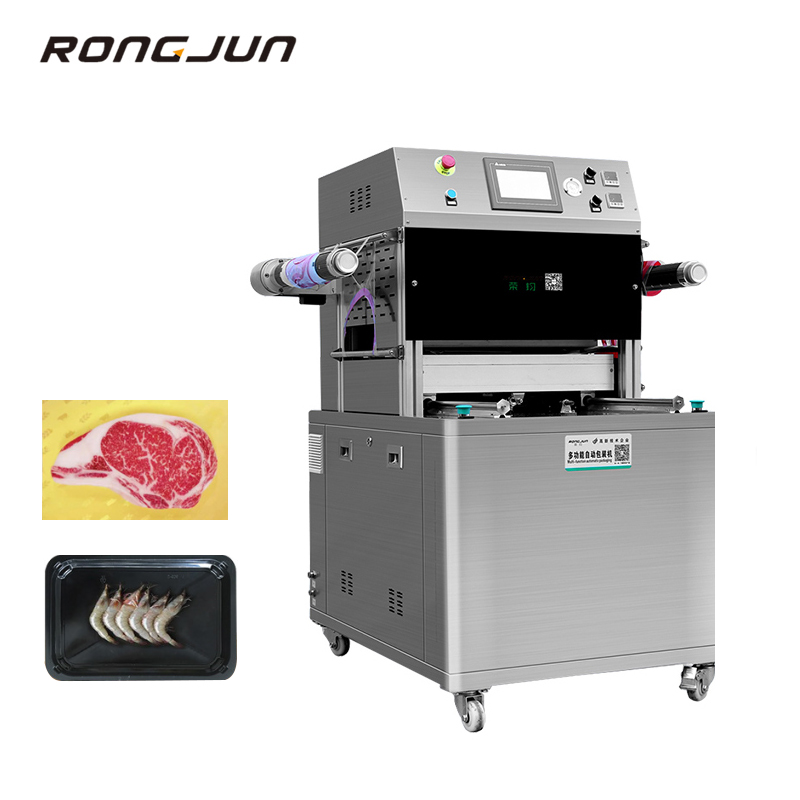

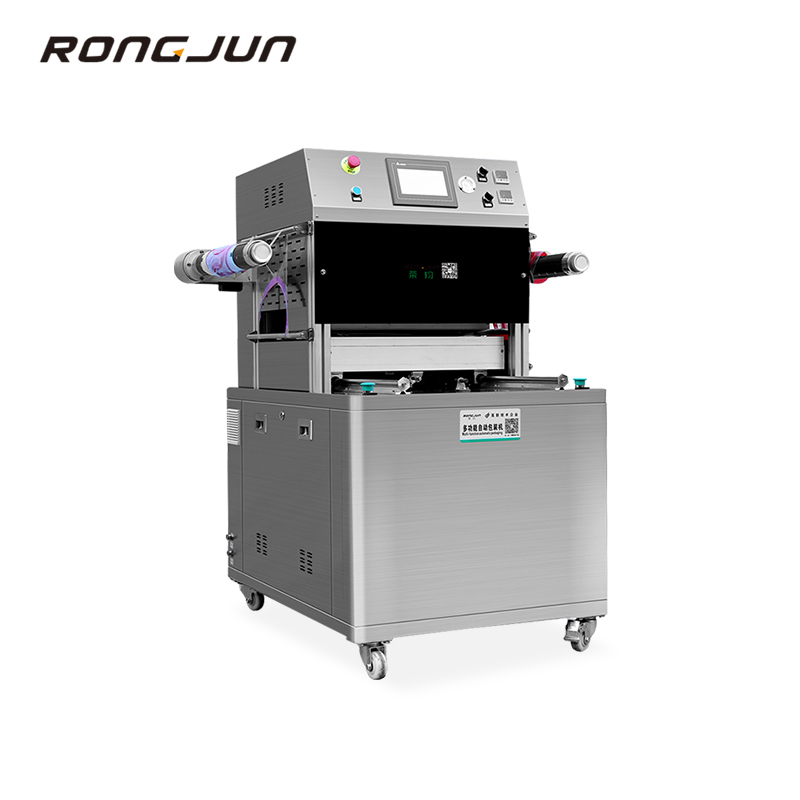

Ryl360-T Skin Packagingmachine
- Type
- Skin Packagingmachine
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- 1080x980x1430
- Key Selling Points
- On-demand customization
- Machinery Test Report
- ISO9001 ，CE
- Material
- 304 stainless steel
- Applicable Products
- Fresh, fruit and vegetable etc
- Function
- Fresh-keeping, color-locking
- Voltage
- 380/50
- Production Capacity
- 360~4004(Out of out)
Main configuration
1. SUS304 stainless steel body and shell
2. Thickened high-quality aluminum 6061 anodized treatment
3. Rongjun independently developed control system
4. Jingpeng vacuum pump
5. Yadeke sensors
6. Yadeke vacuum gauge
7.Yadeke cylinder
8. LuNaiDe Electrical Switch
9.Shanghai Yatai Temperature Controller
| Equlpment model | RYL360-T | RYL430-T |
| Maximum membrane width | 370 | 440 |
| Maximum membrane diameter | 220 | 220 |
| Dimensions(mm) | 1080x980x1430 | 1210x1140x1510 |
| Gas source pressure | 0.6~0.8 | 0.6~0.8 |
| Power(kw) | 3.6 | 5.5 |
| Power supply voltage | 380/50 | 380/50 |
| Packaging box size | 2617(Out of two) | 2617(Out of four) |
| Cycle time (seconds) | 18~20 | 18~20 |
| Packaging speed(box/hour) | 360~400(Out of out) | 720~800(Out of four) |
