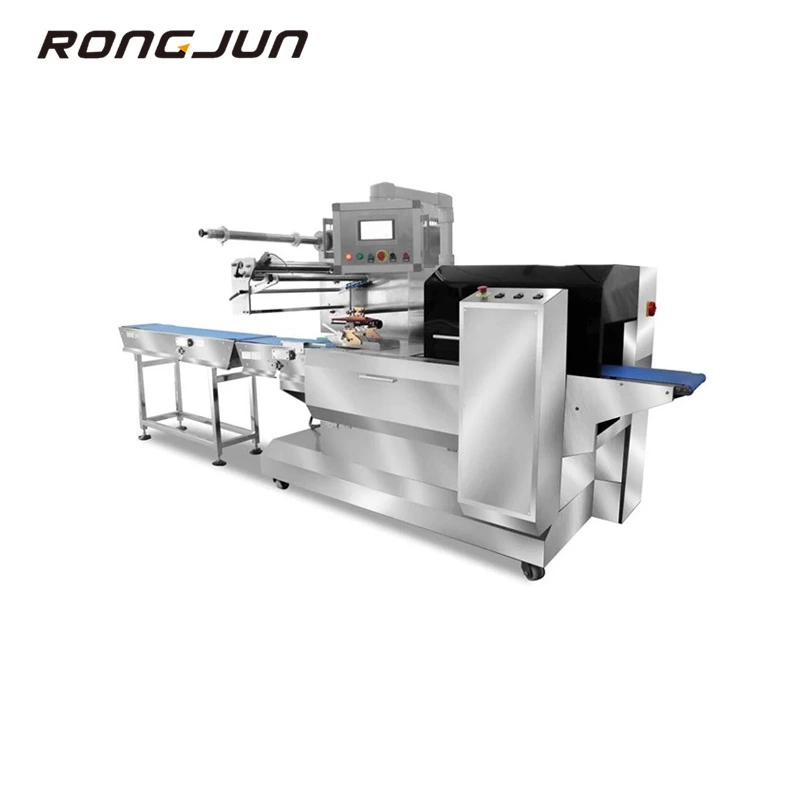

Reciprocating Positive Film Packing Machine

Place of Origin:
Zhejiang, China
Reciprocating Positive Film Packing Machine

Performance Characeristics

  • Locate parking
  • Automatcally adjust the level of the package
  • New reciprocating motion structure
  • Multiple safety precautions
  • Electronic air dcfense and cutting prevention functions
  • Packing film roller automatic alignment centre
  • 7-10-Inches color HMI.360°rotation
  • Three servo motor drive, imported motion cotroller

Scope of application

Suitable for the packing of high-end quick-frozen dumplings,pastry and gluepudding, and can also meet the requirements of packing angle wrapping.coding and automatic film system of relatively high, wide and thick film products.

Technical Parameters

Model RJW520 RJW680 RJW900 RJW1000
Package Flim Size(mm) Max520 Max680 Max900 Max1000
Packing Speed(bag/min) 20-180 20- 80 20-80 20-80
Package Length(mm) 60-300 90-500 200-700 200-800
Product Width(mm) ≤200 ≤280 ≤380 ≤420
Product Height(mm) <140 <140 <180 <180
Power(kw) 4.5 4.5 5.5 5.5
Overall Dimensions(mm) L4700×W1200×H1900 L4850×W1250×H1760 L4850×W1250×H1760 L4850×W1700×H1760
Weight(kg) 1100 ≈1300 ≈1350 ≈1400
Air Capacity 0.5Mpa,80L/Actain 0.5Mpa,80L/Actain 0.5Mpa,80L/Actain 0.5Mpa,80L/Actain
Voltage (V/Hz) 200/50 380/50 380/50 380/50
