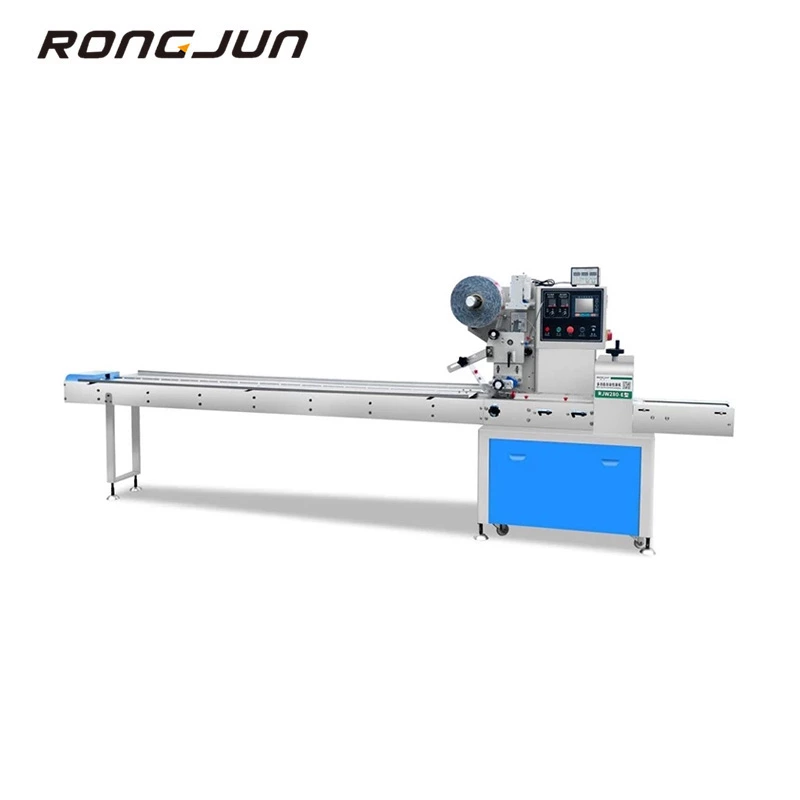

RJW280-E Single Or Three Servo Automatic Packing Machine
- Type
- Single Or Three Servo Automatic Packing Machine
- Weight (KG)
- 500kg
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- L4790×W700×H1520
- Key Selling Points
- On-demand customization
- Machinery Test Report
- ISO9001 ,CE
- Applicable Products
- Daily necessities, hardware accessories, food, etc
- Voltage
- 220V，50/60Hz
- Production Capacity
- 30-200(bag/min)
Performance Characteristics
- The whole machine adopts PLC control, man-machine interface
- Photoelectric automatic tracking system
- Sealed area independent temperature display control, new vertical seal heating
- Avariety of packing, a set of equipment can be used for diferent sizes of product packing
- Machine stainless steel panel
Scope of application
It is mainly used for the packing of various solid objects such as biscuits, bread, moon cakes, egg rolls, candy, medicines, daily necessities, hardware components, cartons or trays.
Technical Parameters
| Model | RJW-280E | RJW-320E |
| Packing Speed(bag/min) | 30-200 | 30-200 |
| Packing Size(mm) | L60-280 W10-40/40-80 H5-25/25-40 | L80-320 W10-40/40-100 H5-30/30-60 |
| Film Max Width(mm) | ＜280 | ＜320 |
| Film Thickness(mm) | ≥0.02 | ≥0.02 |
| Power | 220V，50/60Hz，2.5KW | 220V，50/60Hz，2.5KW |
| Overall Dimensions(mm) | L4790×W700×H1520 | L4790×W700×H1520 |
| Weight(kg) | 500 | 580 |
| Package | 2.2CBM，2CASES | 2.3CBM，2CASES |
| Package Material | OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc. | |
Optional configuration: full servo control, punching, corner inserting, labeling, alcohol spraying, automatic film connection, no material standby, thermal transfer, suction
