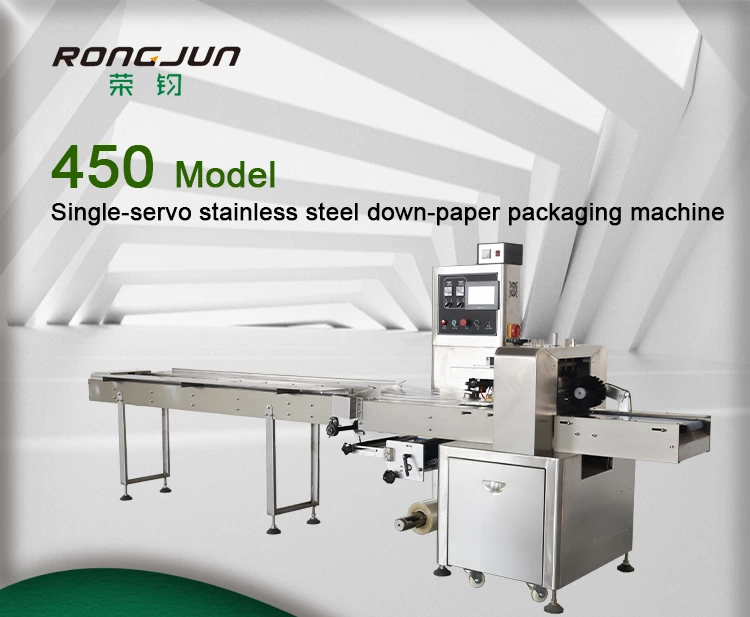

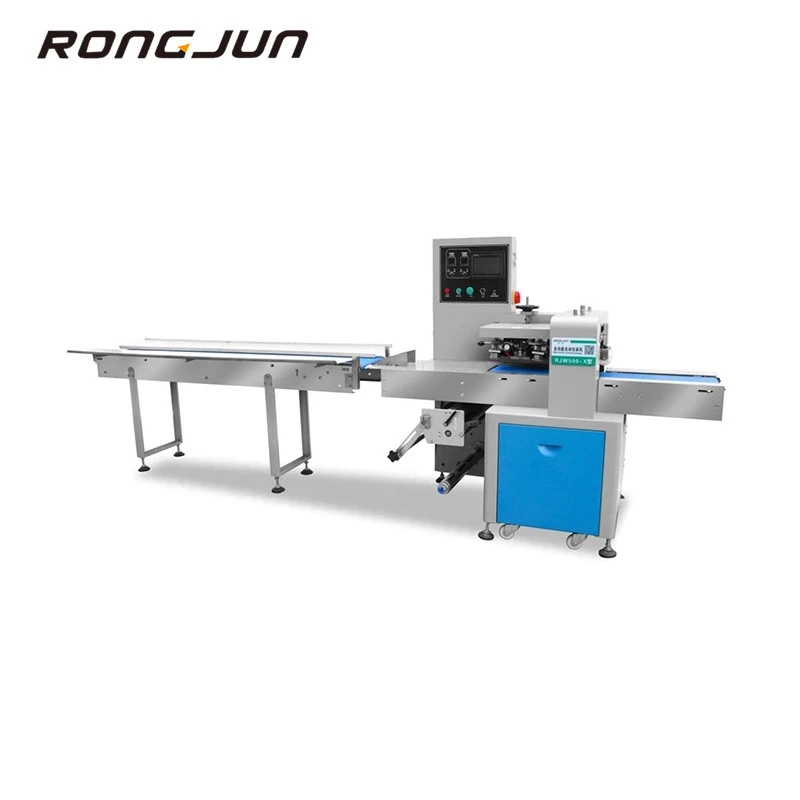

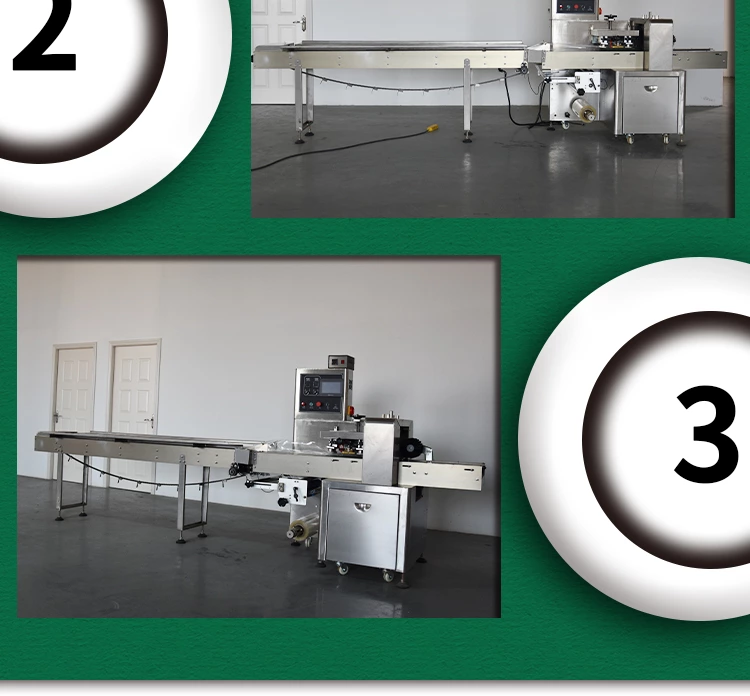

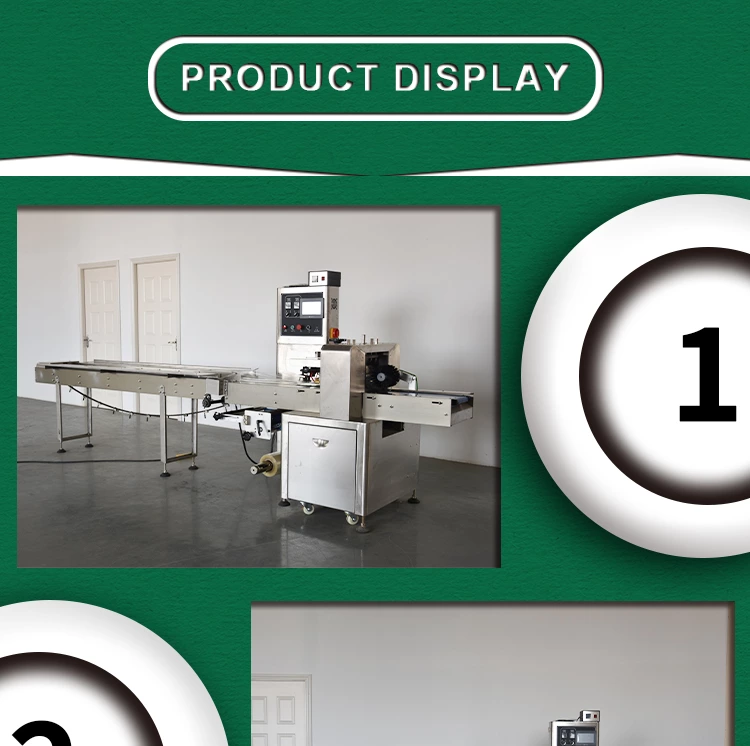

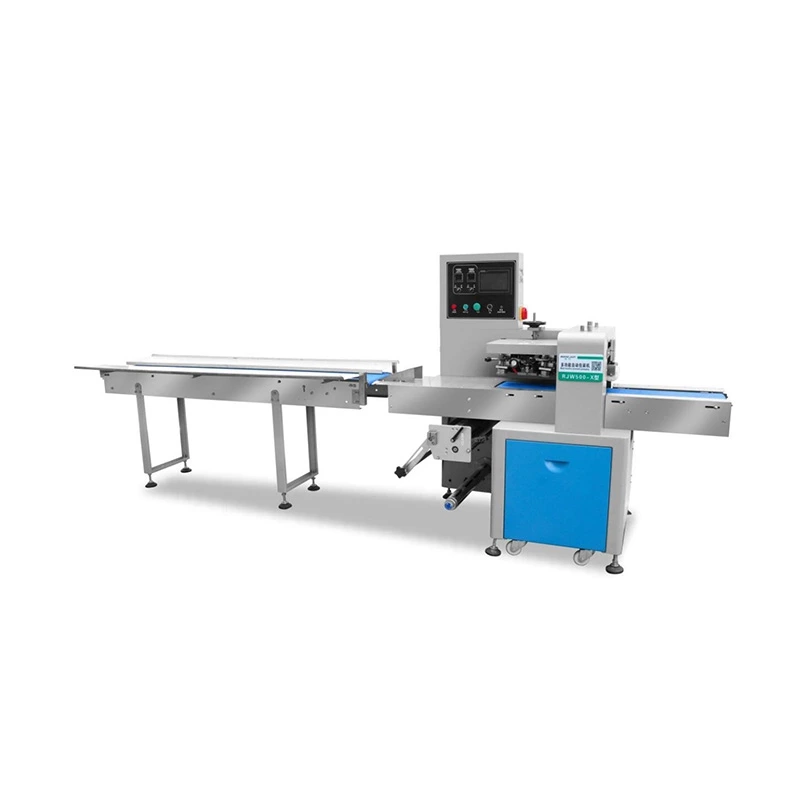

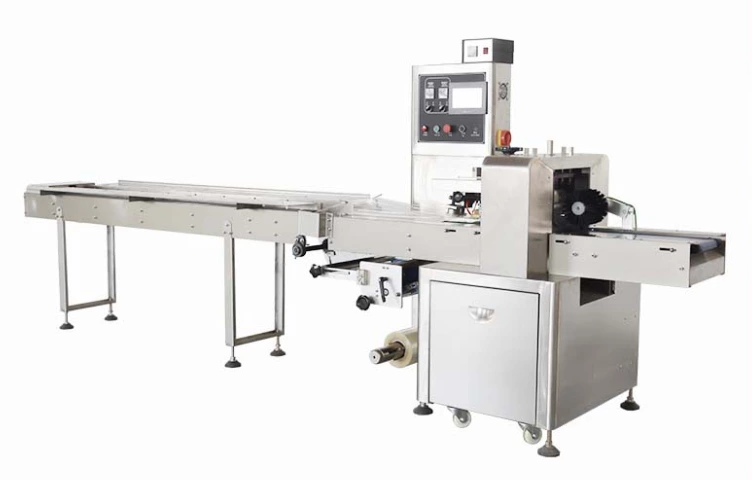

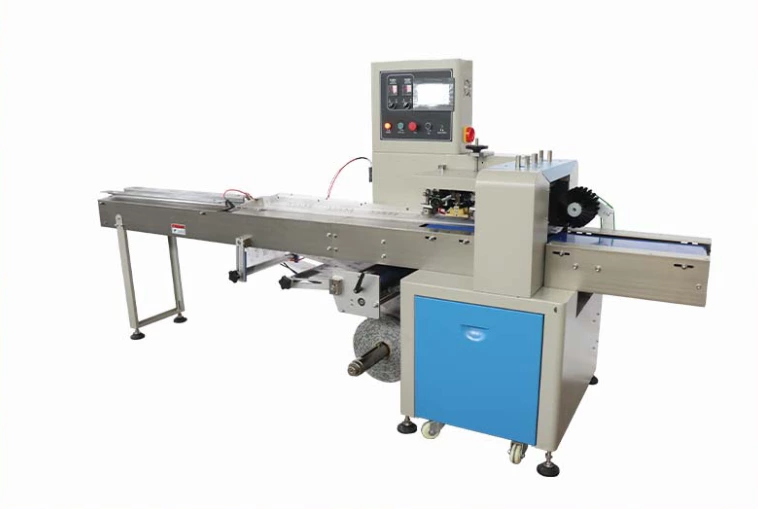

RJW280X/450X Lower Paper Single Or Three Servo Packing Machine
- Type
- Lower Paper Single Or Three Servo Packing Machine
- Weight (KG)
- 500kg
- Packaging Material
- OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- L3870×W700×H1520
- Key Selling Points
- On-demand customization
- Machinery Test Report
- ISO9001,CE
- Applicable Products
- Daily necessities, hardware accessories, food, etc
- Voltage
- 220V，50/60Hz
- Production Capacity
- 30-150(bag/min)
Performance Characteritics
- The whole machine adopts PLC control, man-machine interface
- Photoelectric automatic tracking system
- Sealed area independent temperature display control, new vertical seal heating
- Avariety of packing, a set of equipment can be used for dfferent sizes of product packing
- Machine stainless steel panel
Scope of application
It is mainly suitable for packing various irregular items and sticky solid items. For example, food:preserved fruit, sausage, squid, cake, egg oll, instant noodles, jelly, soft candy, etc,; other categories: towels, wipes, set of toothpaste toothbrushes and other hotel supplies, tape,hardware, pocket notebooks, medicines, etc.

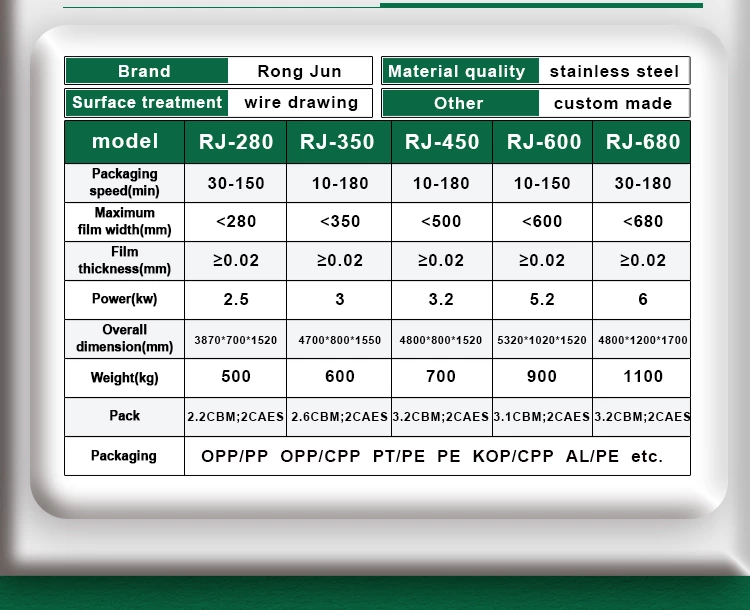

Technical Parameters
| Model | RJW-280X | RJW450X |
| Packing Speed(bag/min) | 30-150 | 30-120 |
| Packing Size(mm) | L60-280 W20-100 H0-25/25-40 | L100-400 W80-200 H0-45/45-75 |
| Film Max Width(mm) | ＜280 | ＜500 |
| Film Thickness(mm) | ≥0.02 | |
| Power | 220V，50/60Hz，2.5KW | |
| Overall Dimensions(mm) | L3870×W700×H1520 | L4800×W800×H1520 |
| Weight(kg) | 500 | 580 |
| Package | 2.2CBM，2CASES | 2.5CBM，2CASES |
| Package Material | OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc. | |
Optional configuration: full servo control, punching, corner inserting, labeling, alcohol spraying, automatic film connection, no material standby, thermal transfer, suction
