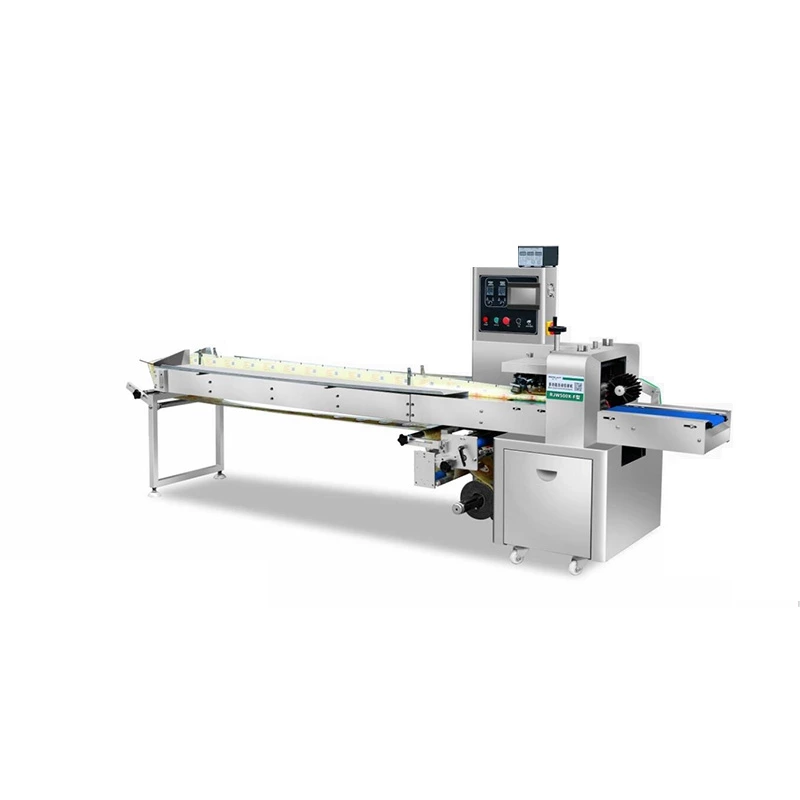

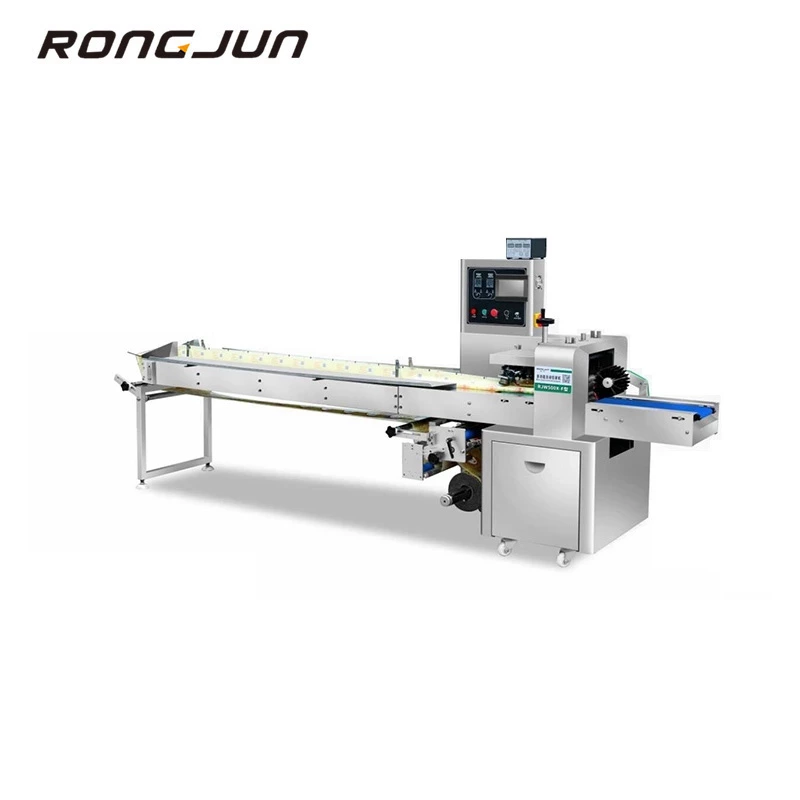

RJW280X/500X Single Or Three Servo Rear Film Wrapping Machine

Place of Origin:
Zhejiang, China
RJW280X/500X Single Or Three Servo Rear Film Wrapping Machine

Performance Charactristics

  • Special rear film structure, placed directly on the packing film, suitable for soft, high viscosity items or multiple pieces of trayless packing; such as: gloves, buns, blankets
  • Two-axis drive, simple structure and low failure rate;
  • Man-machine interface, parameter setting to make the single, fault self- dliagnosis, and displayed on the screen;
  • The middle seal is located above the package, and the package does not receive heat

Scope of application

Dabaohe powder, rice flour, noodles, rice noodles, noodles, flour, wet flour, etc, package size:large weight, large size, high vicosity, irregular items

Technical Parameters

Model RJW-280X RJW500X
Packing Speed(bag/min) 30-150 30-120
Packing Size(mm) L60-280 W20-100 H0-25/25-40 L100-400 W80-200 H0-45/45-75
Film Max Width(mm) <280 <500
Film Thickness(mm) ≥0.02
Power 220V,50/60HZ,2.5KW
Overall Dimensions(mm) L3870×W700×H1520 L4800×W800×H1520
Weight(kg) 500 580
Package 2.2CBM,2CASESE 2.5CBM,2CASESE
Package Material OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、PL/PE etc.
