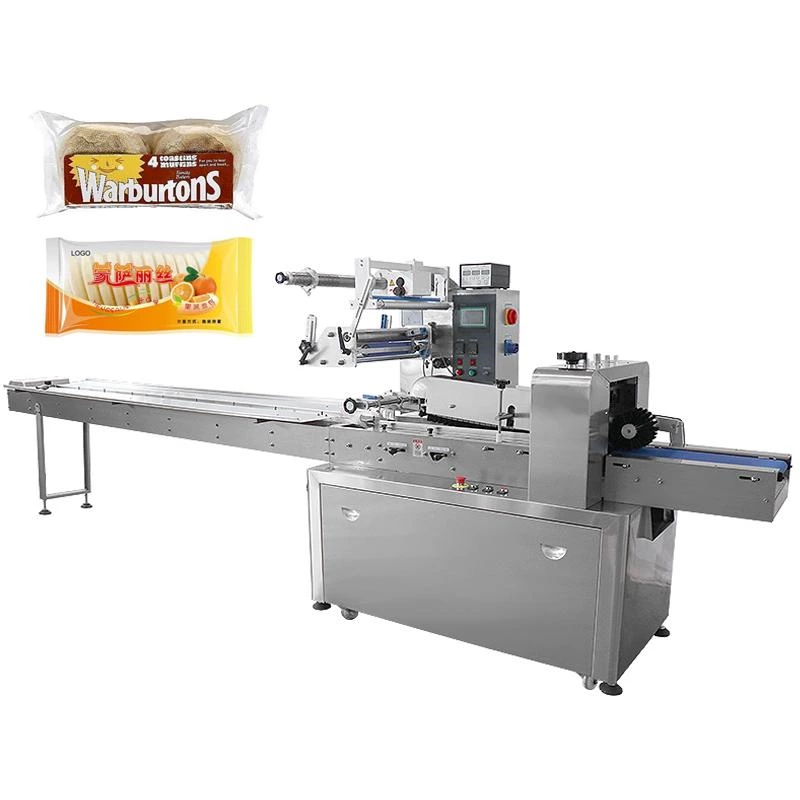

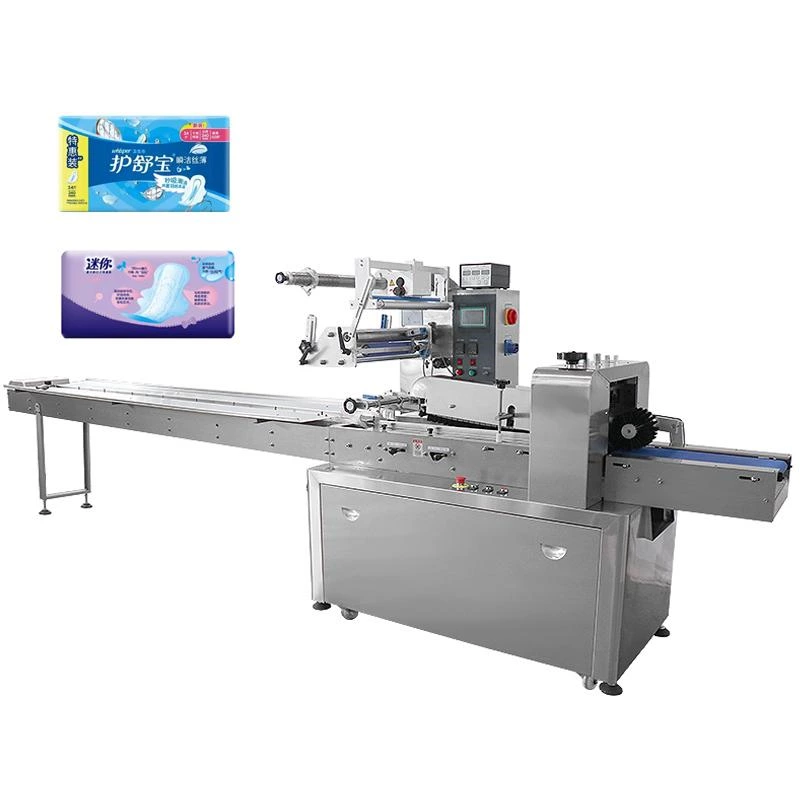

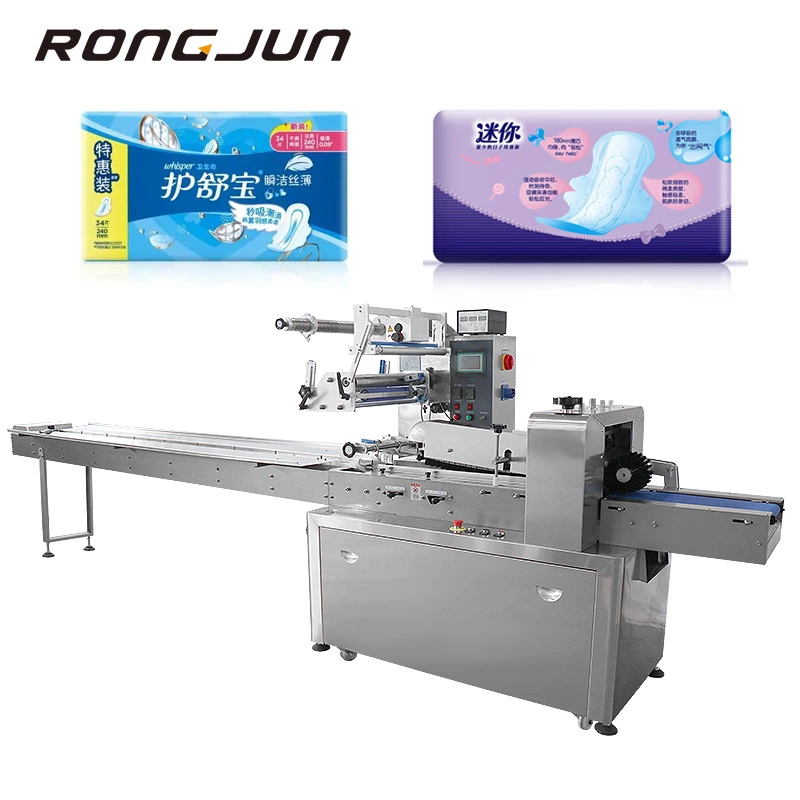

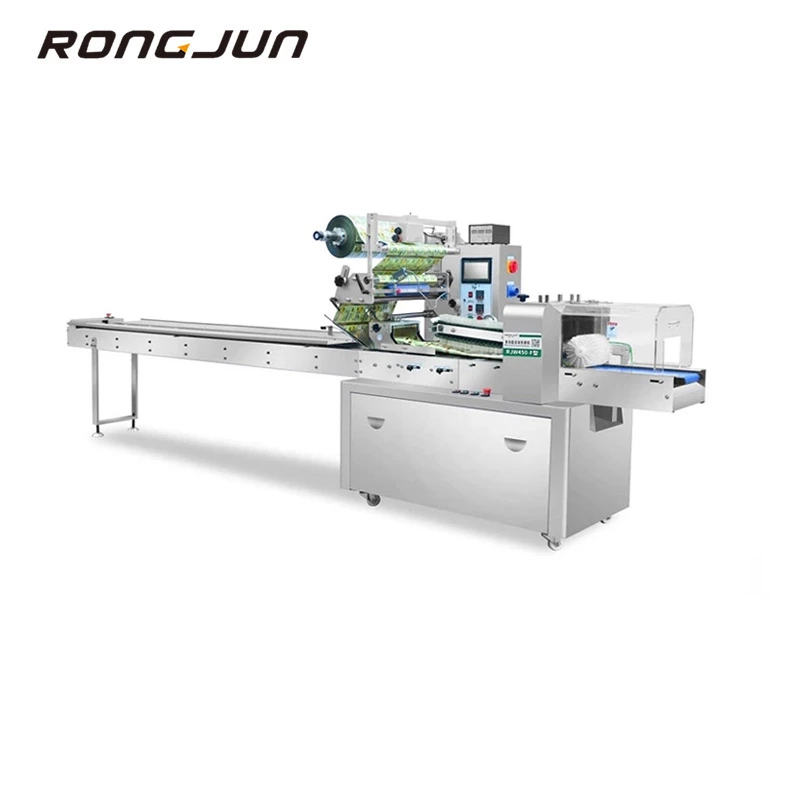

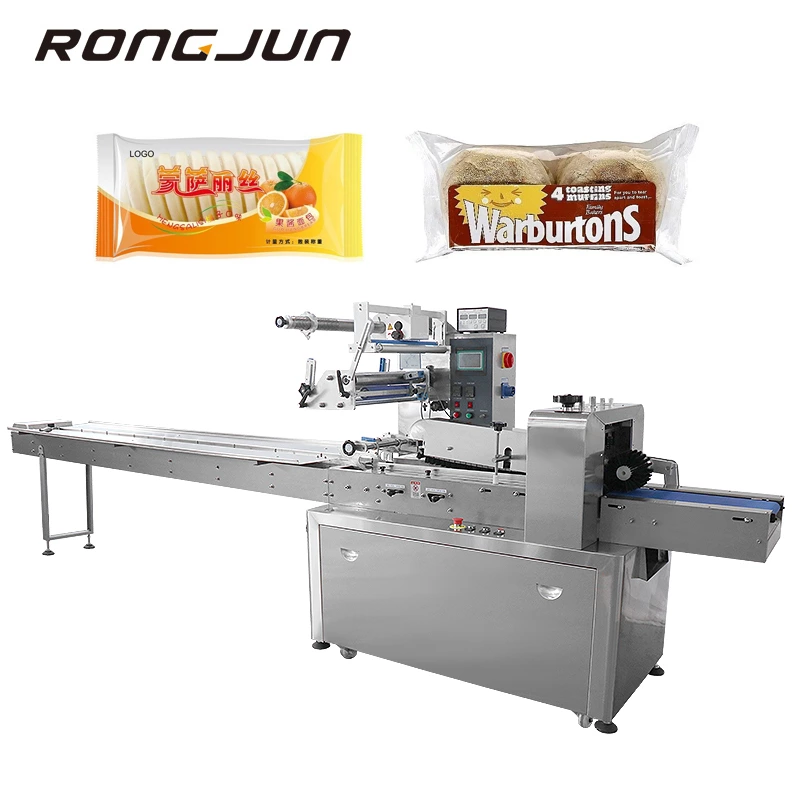

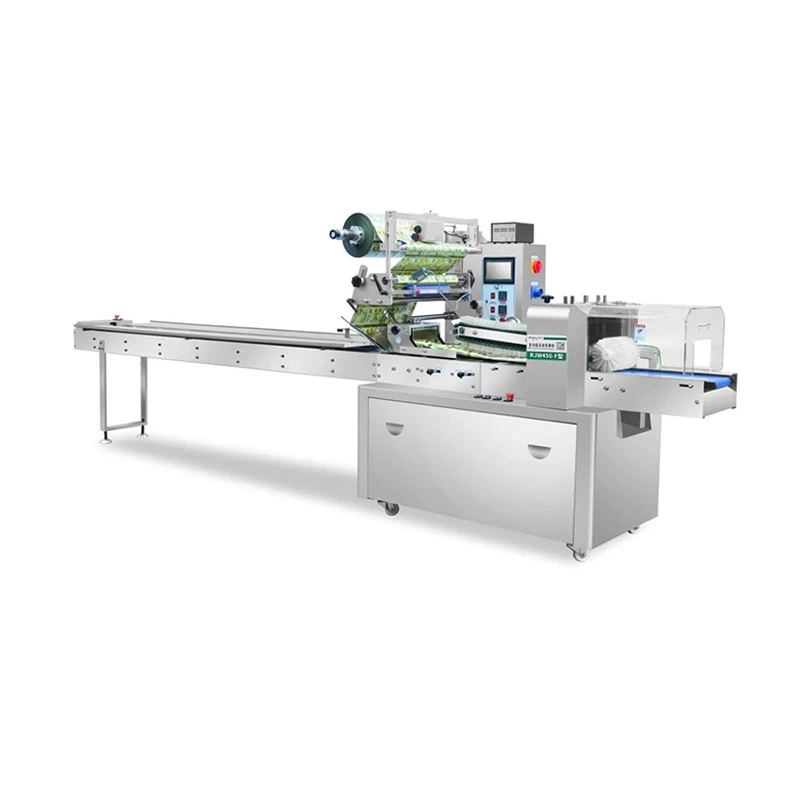

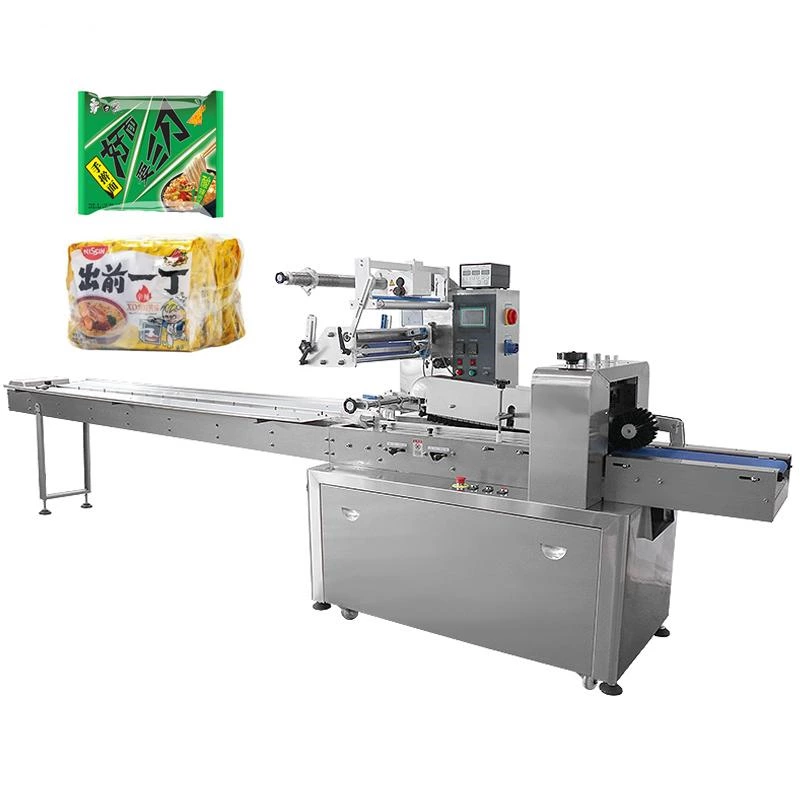

RJW350/450 Single Or Three Servo Automatic Packing Machine
- Type
- Pillow packing machine
- Weight (KG)
- 600
- Packaging Material
- OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc.
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- L5320×W880×H1550
- Machinery Test Report
- ISO9001 ,CE
- Material
- Stainless steel
- Applicable Products
- Suitable for large packes of regular objects such as biscuits, moon cakes, bread,
- Voltage
- 220V，50/60Hz
- Production Capacity
- 10-180(bag/min)

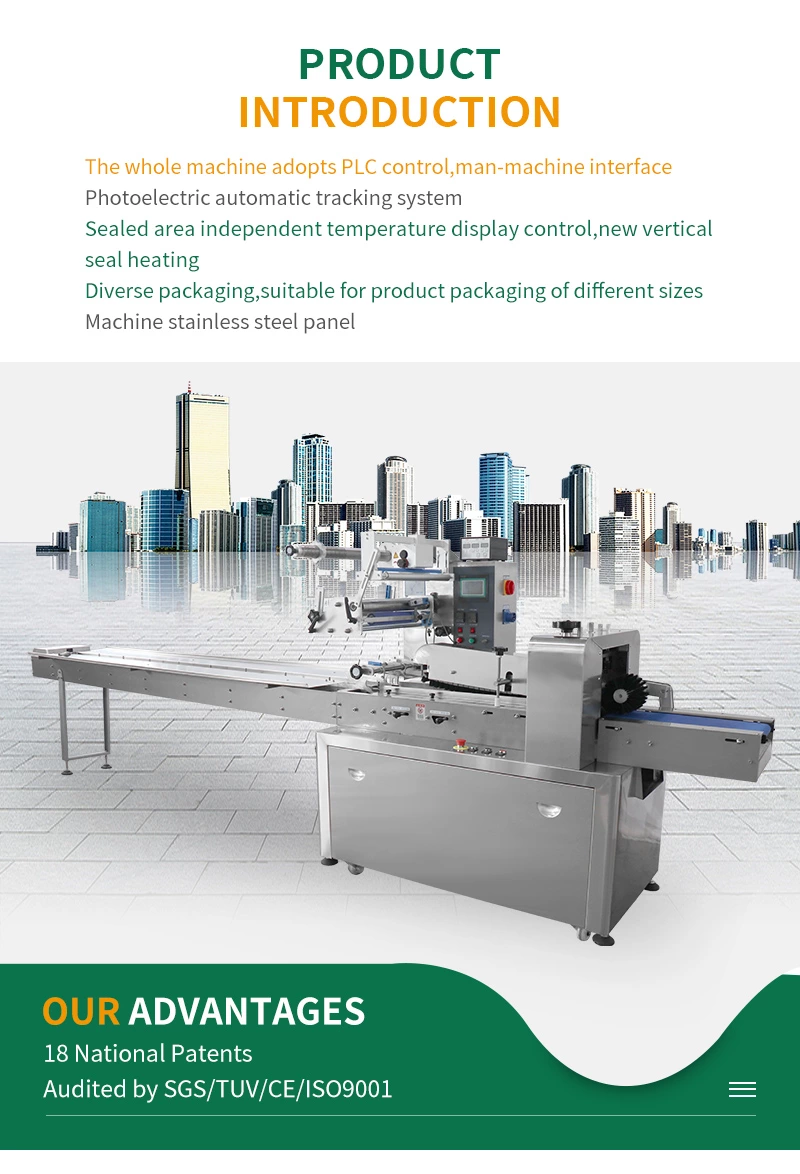

Performance Characeristics
- The whole machine adopts PLC control, man-machine interface
- Photoelectric automatic tracking system
- Sealed area independent temperature display control, new vertical seal heating
- Diverse packing, suitable for product packing of different sizes
- Machine stainless steel panel
Scope of application

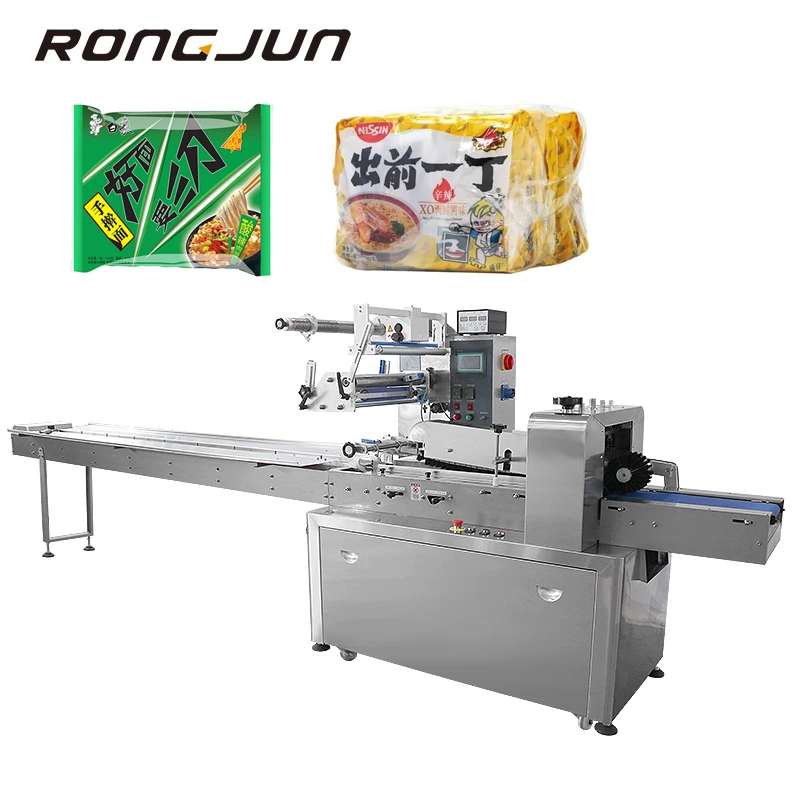

Suitable for biscuits, moon cakes, bread, instant noodles, large paper towels, sanitary napkins,infusion bags, lamps, pipe fttings, industrial parts,Large packaging of regular objects such as cartons or trays.

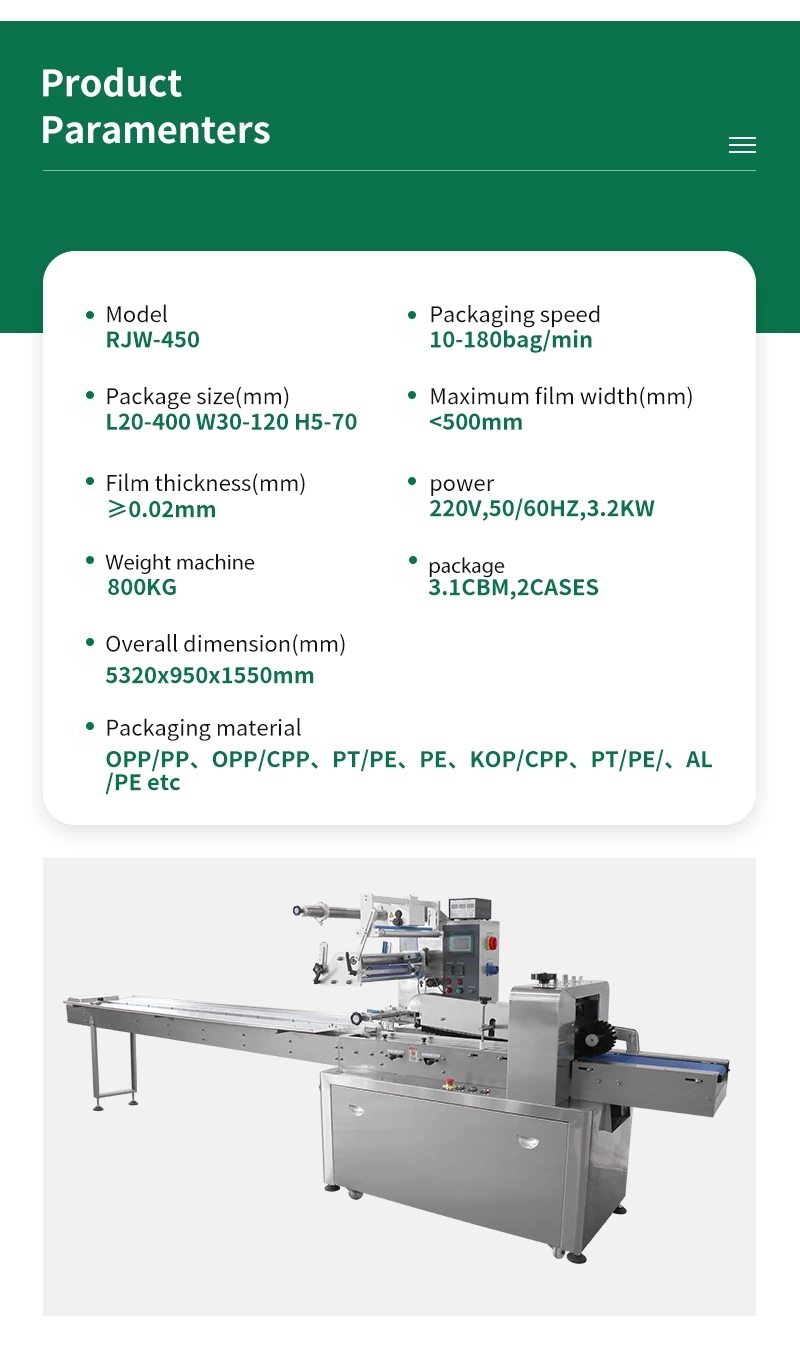

Technical Parameters
| Model | RJW-350Brush | RJW-450Brush |
| Packing Speed(bag/min) | 10-180 | 10- 180 |
| Packing Size(mm) | L:80-320 W:30-120 H:5-50 | L:120-400 W:30-180 H:5-70 |
| Film Max Width(mm) | ＜360 | <500 |
| Film Thickness(mm) | ≥0.02 | ≥0.02 |
| Power | 220V，50/60Hz，3.0KW | 220V，50/60Hz，3.2KW |
| Overall Dimensions(mm) | L5320×W880×H1550 | L5320×W950×H1550 |
| Weight(kg) | 600 | 800 |
| Package | 2.6CBM，2CASES | 3.1CBM，2CASES |
| Package Material | OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc. | |
Optional configuration: full servo control, punching, corner inserting, labeling, alcohol spraying, automatic film connection, no material standby, thermal transfer, suction
