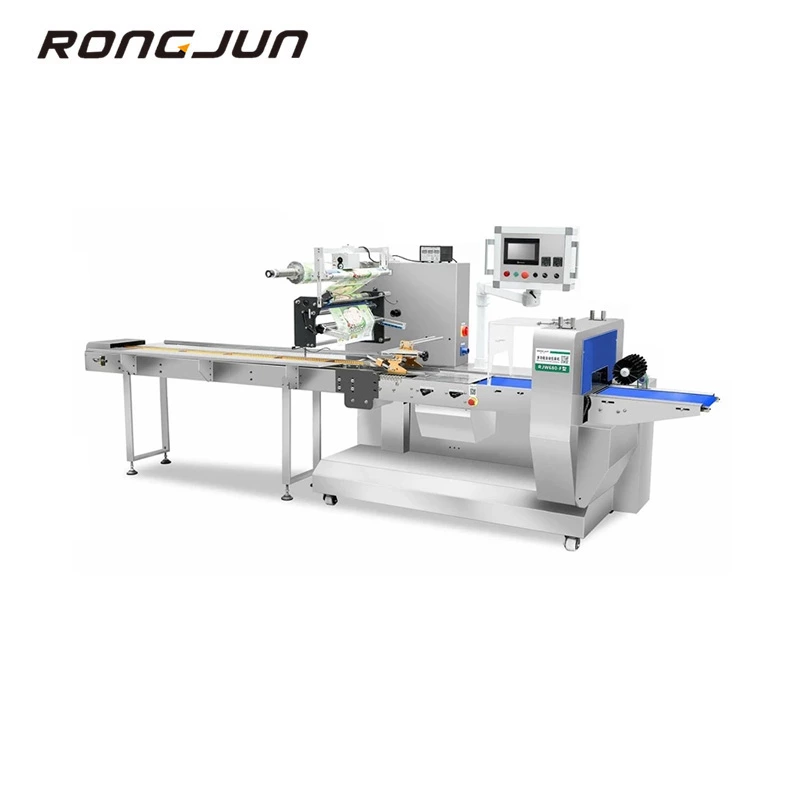

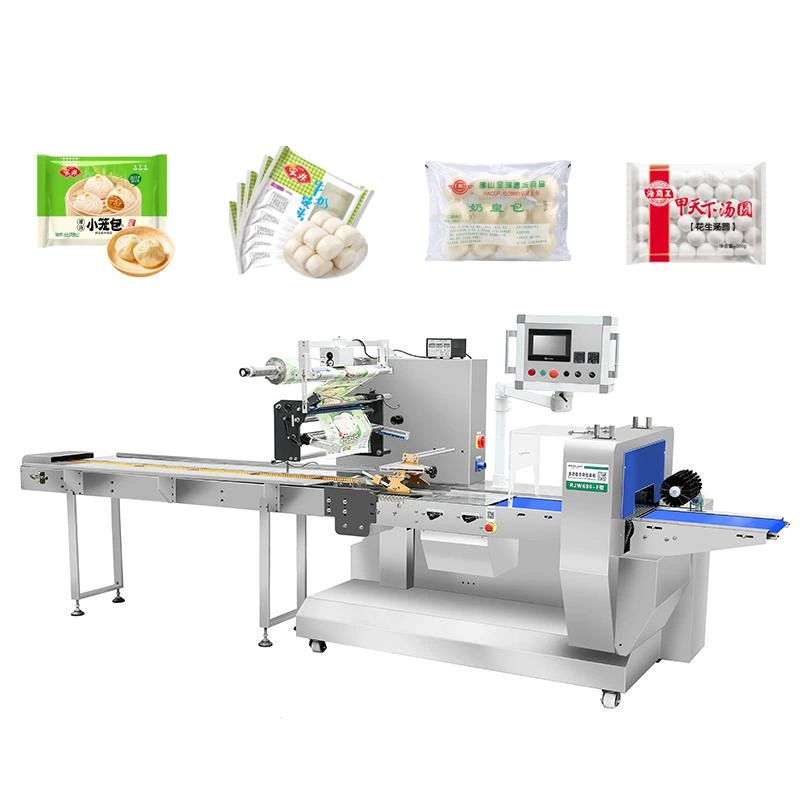

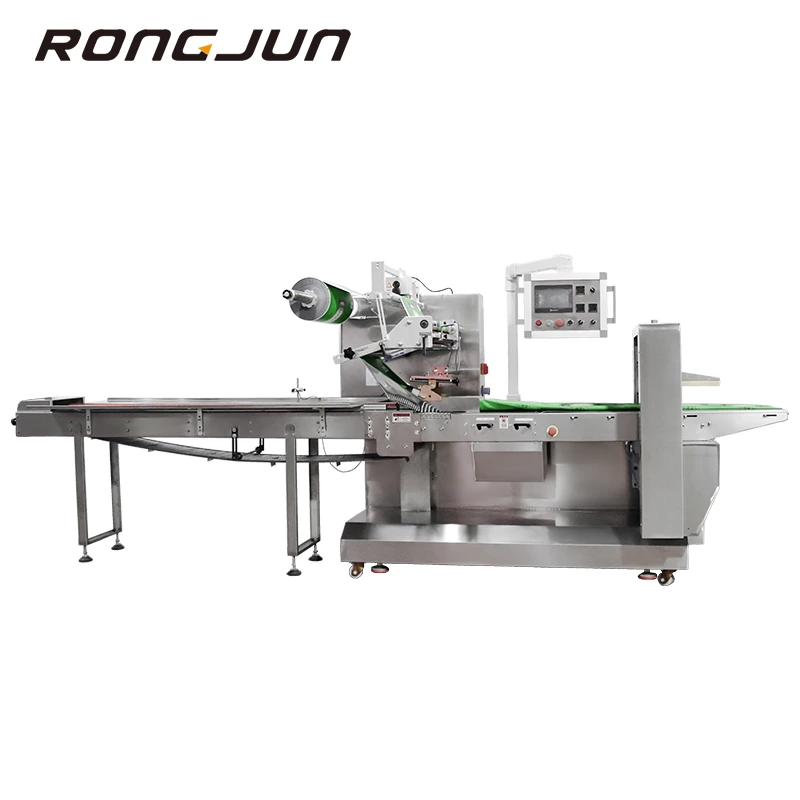

RJW680-F Three Servo Multi-function Unloading Packing Machine
- Type
- Three Servo Multi-function Unloading Packing Machine
- Weight (KG)
- 1100
- Packaging Material
- OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc.
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- L4800xW1200xH1700
- Machinery Test Report
- ISO9001,CE
- Material
- Appearance material stainless steel
- Applicable Products
- It is mainly used for the packing of various solid objects such as biscuits, bread, moon cakes,medicines, daily necessities, hardware parts, electrical components, paper boxes or trays.
- Voltage
- 220V,50/60Hz
- Production Capacity
- 30-180(bag/min)
Ultra-wide packing range/Automatic variable speed cutter/Precise anti-air packaging/Cutter torque protection
Shaftless transmission technology/High precision of color mark tracking/No cutting if packing material deviates

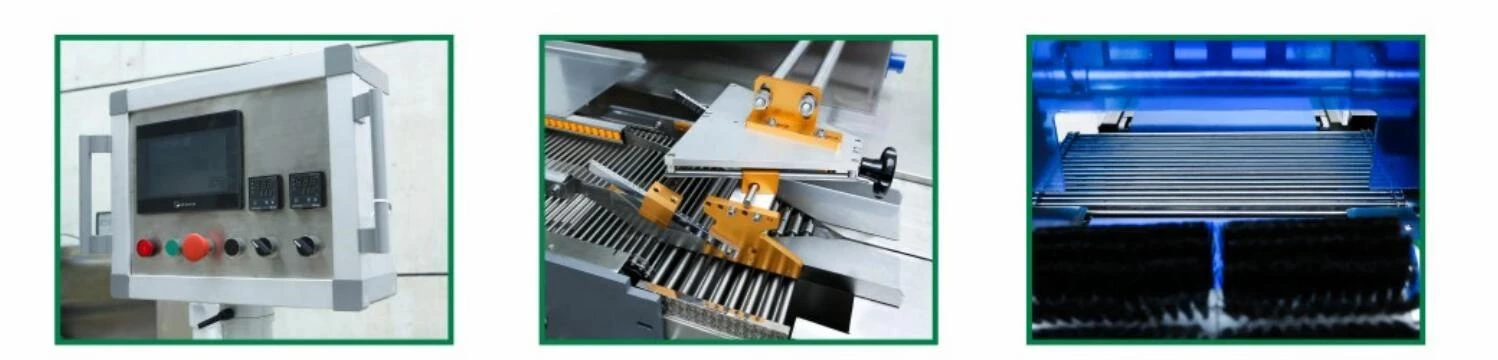

360° touch screen rotation re-test adjustable former knife seal support chain
Performance Characteristics
- Three servo drive with empty bag detection,Automatic feeding and other functions
- User-friendly bevel design, no clean corners
- Man-machine interface, PLC control
- Photoelectric detection, automatic tracking
- Multiple security measures
Scope of application

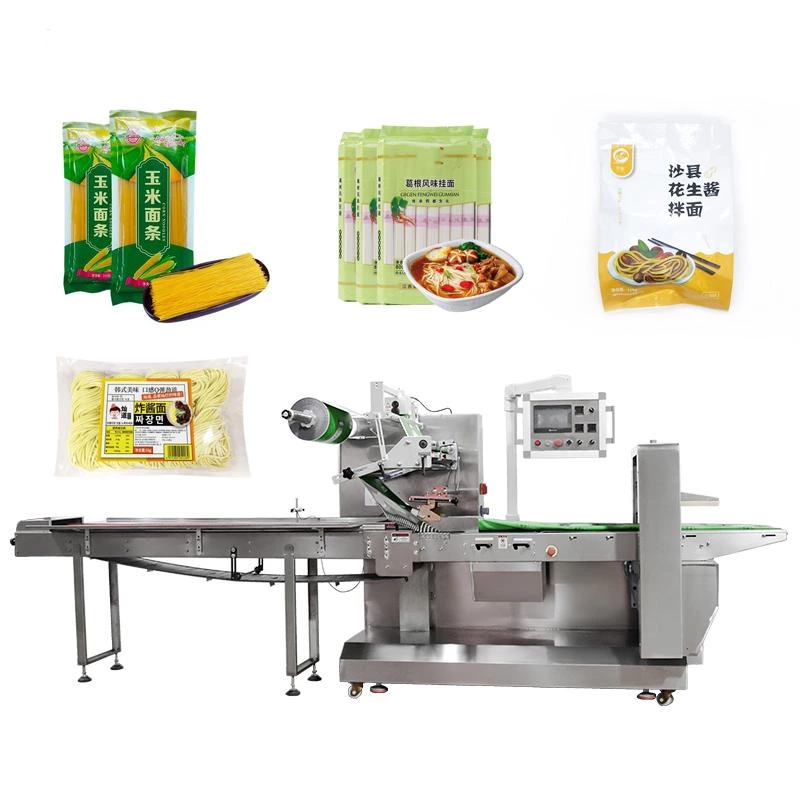

Suitable for all kinds of non-tray packing, such as: noodles, multiple buns,multiple steamed buns, hair cakes and other frozen foods and meat products
Technical Parameters
| Model | RJW 680-F |
| Packing Speed(bag/min) | 30-180 |
| Packing Size(mm) | L150-6000 W100-260 H5-130 |
| Film Max Width(mm) | 680 |
| Film Thickness(mm) | ≥0.025 |
| Total Power(kw) | 6 |
| Voltage（V/Hz） | 220V/50Hz |
| Machine Weight(kg) | 1100 |
| Overall Dimensions(mm) | L4800xW1200xH1700 |
