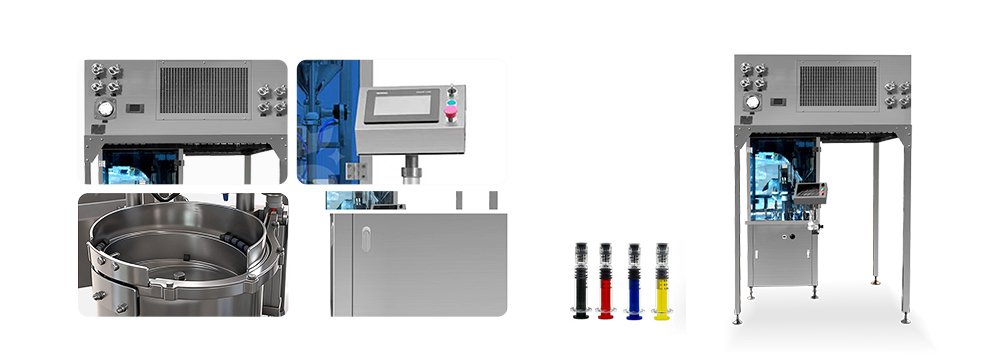

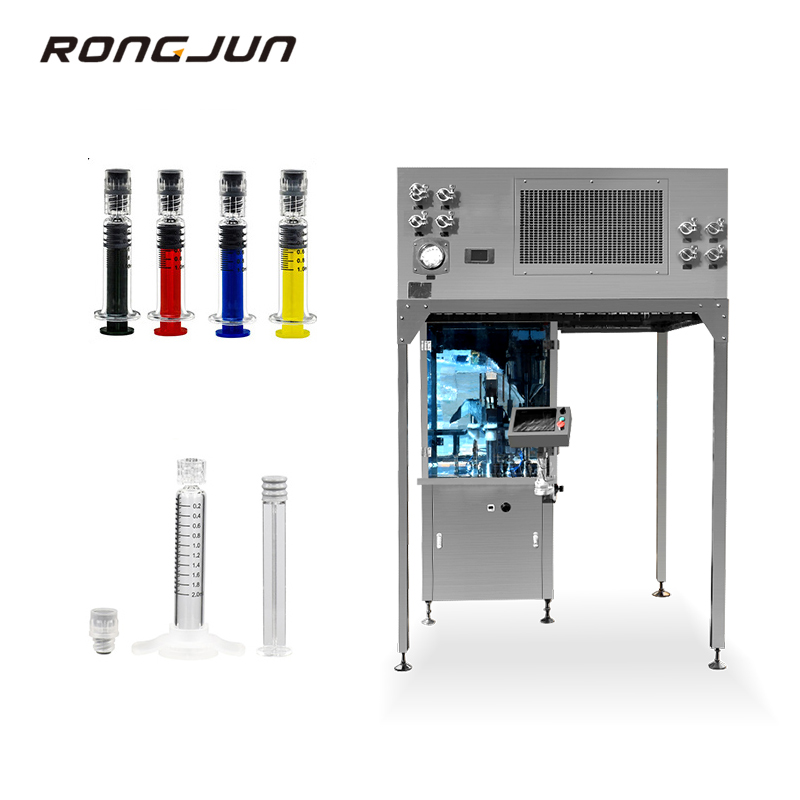

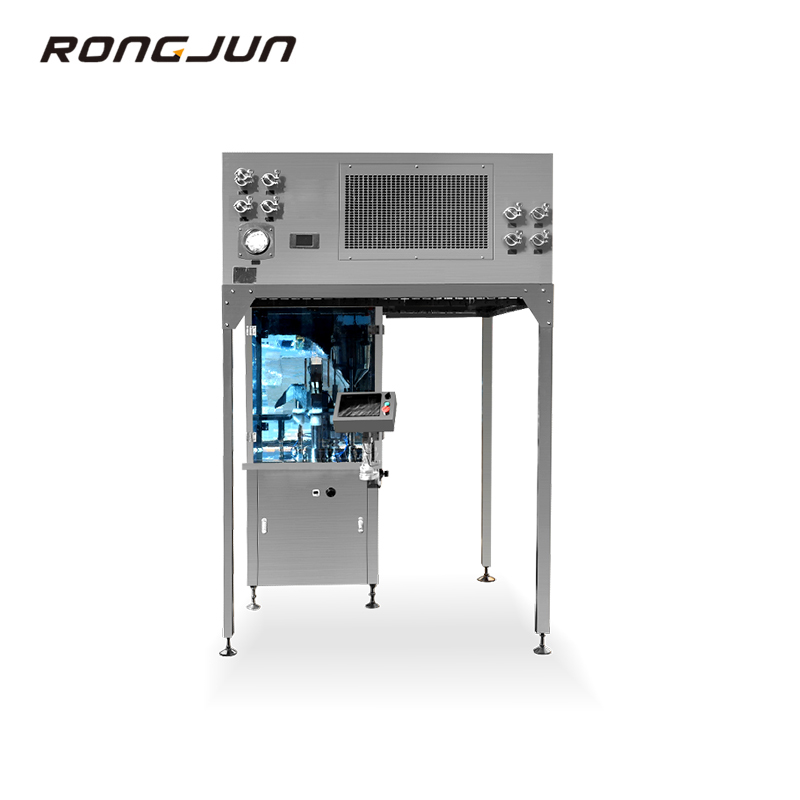

R30 Pre-filling And Sealing Syringe Automatic Filling And Plugging Machine
- Place of Origin :
- Wenzhou, Zhejiang, China
Technical Parameters
* Put the syringes nest by hand
*Tear the paper in the nest by hand
* Syringes out of nest automatically
* Syringe putting in the cup automatically
* Filling the liquid into syringe automatically
* Put rubber into syringe in vacuum condition automatically
* Syringe out of machine automatically
* Machine size is small and the construct is smart
* Most of the process finished by machine automatially
| Model | RSL-30s |
| Suitable For | suitable for water-base and poultice viscous liquid |
| Suitable For Syringe Volume | 0.5ml、1ml、1.5ml 2.25ml、3ml、5ml、10ml、20ml |
| Filling Accuracy | ≤±1% |
| Number Of Filling Pins | 1pcs |
| Production Speed | 900-1200Pcs/hour |
| Total Power | 2.7KW |
| Compress Air | 0.55-0.75 Mpa20L/S |
| Vacuum System | Machine for water-based soultion,no need vacuum pump. Machine for poultice, viscous liquid, gel, 6x10-2 Pa15L/S vacuumis required. |
| Overall Dimension（mm） | L1200×W950×H1800 |
| Weight Of Basic Machine | 900kg |
