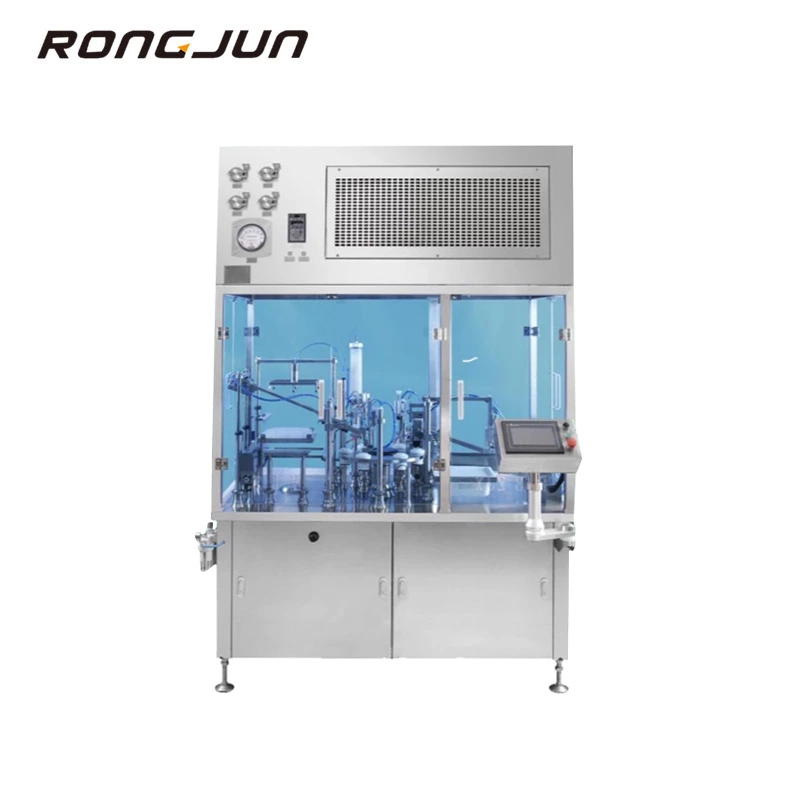

RPZ50-1N Vacuum Filling And Plugging Machine For Glass Pre-filling And Sealing Syringe

Place of Origin :
Wenzhou, Zhejiang, China
Enquiry
RPZ50-1N Vacuum Filling And Plugging Machine For Glass Pre-filling And Sealing Syringe
RPZ50-1N玻璃预灌封注射器真空灌装加塞机 Functional Characteristics
  • Suitable for vacuum filling of paste and water.
  • Automatic nest removal, automatic box separation.
  • Automatic tube, separate tube into the cup.
  • Automatic follow feed, vacuum plug.(extermal vacuum pump)
  • There are no air bubbles in the medicine after filling.
  • Optional laminar flow.
  • This machine can be used in a single machine,or can be composed of a complete assembly line.


Scope of application

RPZ50-1N玻璃预灌封注射器真空灌装加塞机

Technical Parameters

Model RPZ50-1N
Suitable For suitable for water-base and poultice viscous liquid

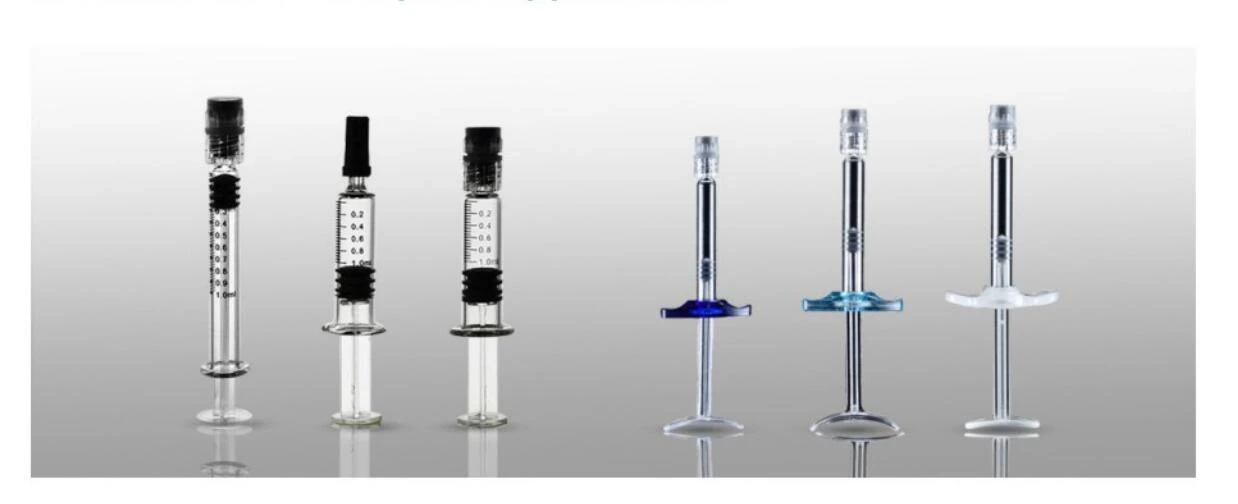

Suitable For Syringe Volume 0.5ml、1ml、1.5ml 2.25ml、3ml、5ml、10ml、20ml
Filling Accuracy ≤±1%
Number Of Filling Pins 1pcs
Production Speed 900-1200Pcs/hour
Total Power 2.7KW
Compress Air 0.55-0.75 Mpa20L/S
Vacuum System Machine for water-based soultion,no need vacuum pump.
Machine for poultice, viscous liquid, gel, 6x10-2 Pa15L/S vacuumis required.
 Overall Dimension（mm） L1200×W950×H1800
Weight Of Basic Machine 900kg
