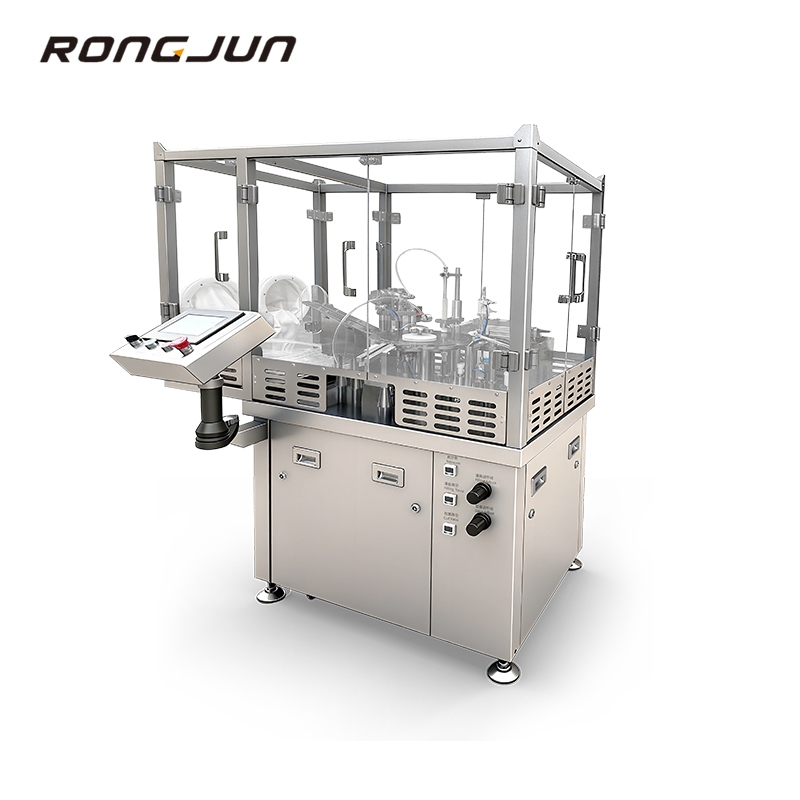

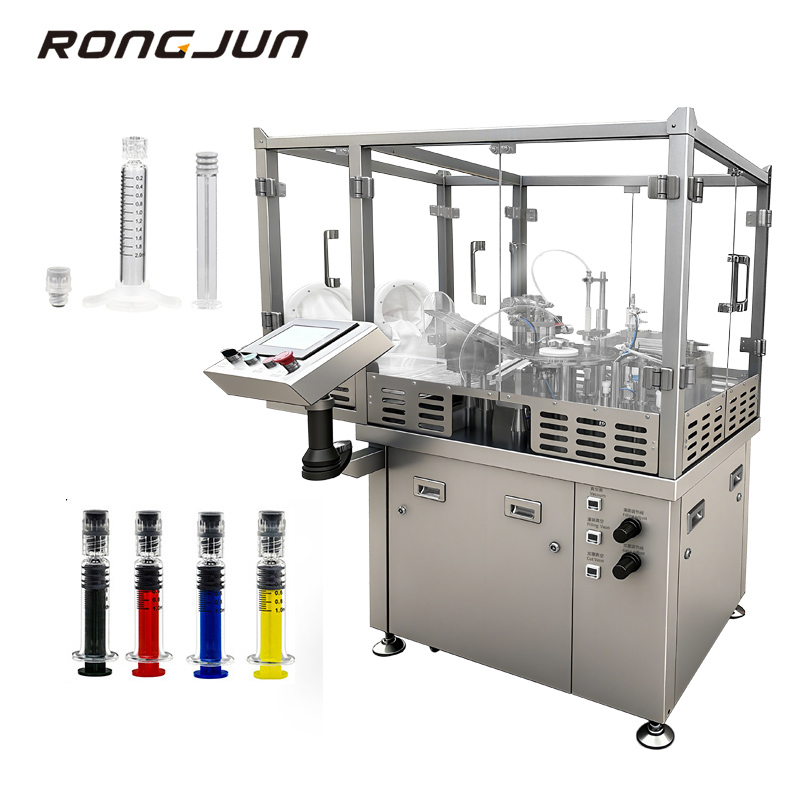

Rsl-30s Plastic Syringe Filling And Plugging Machine
- Type
- Plastic Syringe Filling And Plugging Machine
- Weight (KG)
- 900kg
- Place of Origin :
- Wenzhou, Zhejiang, China
- Dimension(L*W*H)
- 1200*950*800H
- Key Selling Points
- On-demand customization
- Machinery Test Report
- ISO9001 ,CE
- Material
- Stainless steel material
- Applicable Industries
- Medical beauty, medicine
- Voltage
- 220/50
- Production Capacity
- 900-1200pieces /h
* Suitable for wacuum filling of paste and water.
* Automatic nesting, automatic box separation.
* Automatsc tuoe, separate tube into the cup.
* Autommatsc follow feed, vacuum piug(External vacuum pump)
* There are no air bubbles in the medicine after filling
* Optional laminar flow.
* This machine can be used in a single machine,or can be composed of a complete assembly line.
Technical Parameters
| Model | RSL-30s |
| Suitable For | suitable for water-base and poultice viscous liquid |
| Suitable For Syringe Volume | 0.5ml、1ml、1.5ml 2.25ml、3ml、5ml、10ml、20ml |
| Filling Accuracy | ≤±1% |
| Number Of Filling Pins | 1pcs |
| Production Speed | 900-1200Pcs/hour |
| Total Power | 2.7KW |
| Compress Air | 0.55-0.75 Mpa20L/S |
| Vacuum System | Machine for water-based soultion,no need vacuum pump. Machine for poultice, viscous liquid, gel, 6x10-2 Pa15L/S vacuumis required. |
| Overall Dimension（mm） | L1200×W950×H1800 |
| Weight Of Basic Machine | 900kg |
