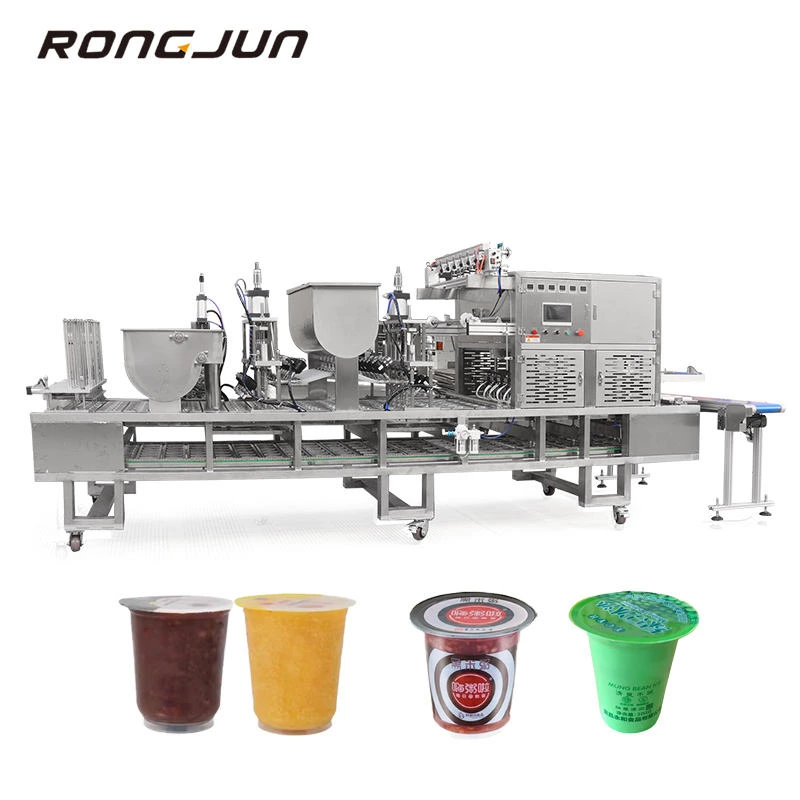

Automatic Cup Filling and Sealing Machine
Our cup sealing machine is a fully automatic packaging production line that integrates automatic cup feeding, filling, sealing, and cup output. This machine adopts a stainless steel body, which meets hygiene requirements and is easy to clean. It is suitable for cup packaging and sealing of paste, particles, powder and other products. It is suitable for sealing plastic cups, paper cups, aluminum plastic and other cup box products. Our company has over more than ten years of production experience. With advanced technology in the industry and the use of well-known Japanese, Taiwanese, and domestic brands for control systems and pneumatic components, it has the characteristics of low failure rate, stable operation, and long service life.
It has different specifications for filling and is suitable for filling any beverage or paste like product with different viscosity, such as curry (jelly), milk, ice cream, butter, fruit juice, mineral water, etc., and is sealed with a composite film of the corresponding material.
- Technical Specification
| Model | RJ-BG4 (4 cups) | RJ-BG6 (6 cups) | RJ-BG8 (8 cups) |
| Capacity | 3200-3600 cups/hour | 4000-4500 cups/hour | 5500-6000 cups/hour |
| Voltage | 220/380V | ||
| Power | 2800W | 3200W | 4500KW |
| Air Pressure | 0.7-1.0MPA | ||
| Sealing Temperature | 0-300℃ | ||
| Cup top diameter | Customized | ||
| Machine body | Stainless steel | ||
| Dimension | 3800x800x1750mm | 4000x1000x1800mm | 4300x1200x2000mm |
| Net Weight | 600KGS | 700KGS | 800KGS |
III. Workflow:
Automatic box placement → automatic filling → automatic film rolling → automatic sealing → automatic color mark alignment → automatic film cutting → output.
IV. Applicable scope:
1. The material of the equipment body is made of stainless steel, which has the characteristics of corrosion resistance, embroidery resistance, durability, etc., ensuring the stable operation of the machine in various environments.
2. Intelligent control system, LCD display screen, durable and stable working program, intuitive parameter setting, users can preset the working mode according to the product. Simple and convenient operation.
3. Fully enclosed vacuum displacement chamber.
4. Film collection system+waste film collection system.
5. The complete set of molds for this machine is made of aluminum alloy material, which has undergone high-precision processing and is corrosion-resistant with light weight.
6. The entire sealing mold of this machine is made of aluminum alloy.
7. The machine is equipped with a brand PLC and its pneumatic components, providing more secure use.
